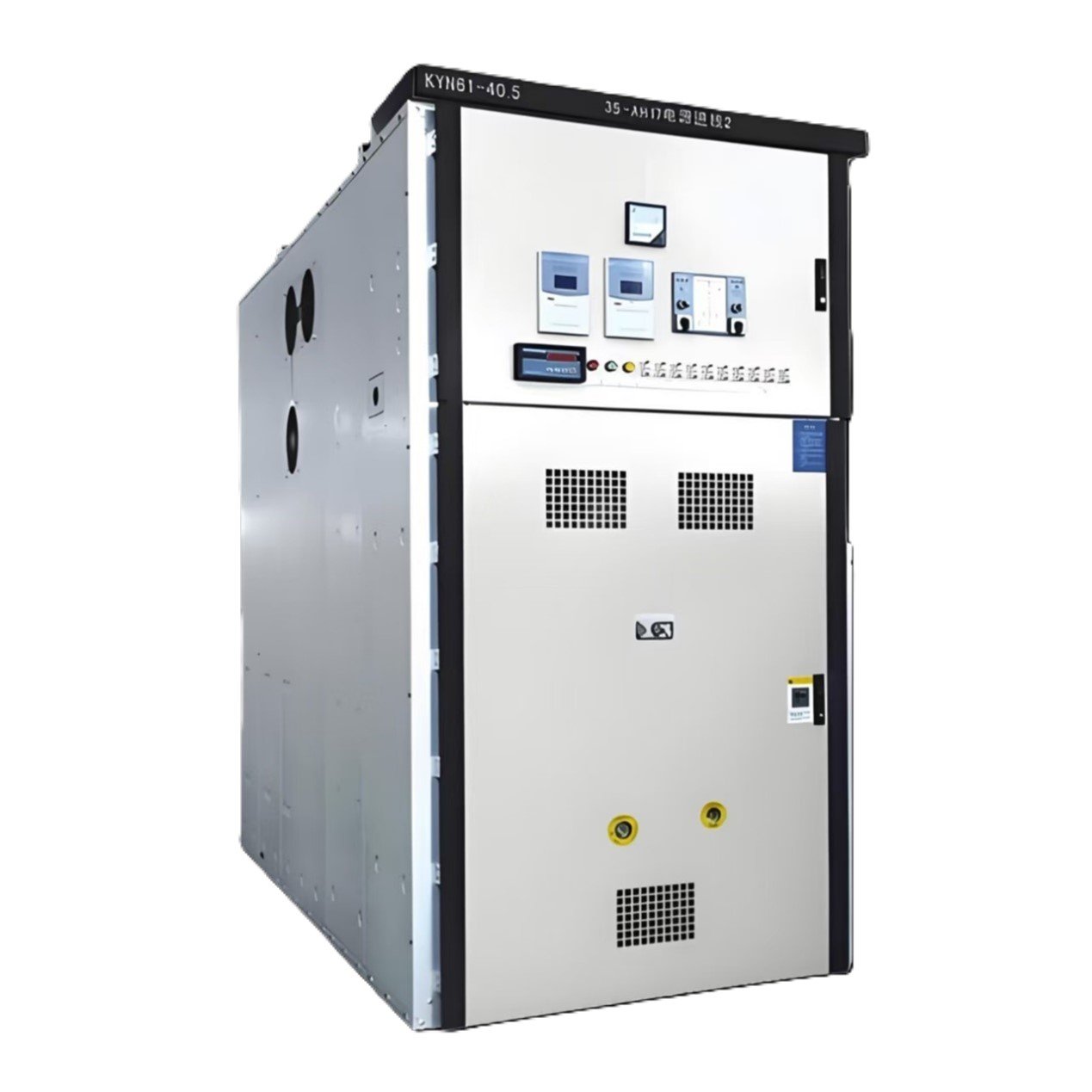

KYN61-40.5 Indoor Metal-Clad Removable Type Switchgear

Product Description:
The KYN61-40.5 indoor metal-clad removable type switchgear is independently developed by our company, incorporating advanced 35kV switchgear technologies from both domestic and international sources. It is suitable for indoor three-phase AC 50Hz power systems with a rated voltage of 40.5kV. It is used in power distribution rooms of power plants, substations, and industrial enterprises for receiving and distributing electrical energy, while providing monitoring, protection, and control of circuits.

The main switch uses the ZN85-40.5 series vacuum circuit breaker, which features long service life, high breaking capacity, high enclosure protection, excellent insulation, safe and reliable operation, and convenient maintenance. The switchgear also incorporates a “five-proof” design.

The product complies with GB 3906 and IEC 62271-200 standards.

Product Features:

• Ambient air temperature should not exceed +40°C, with a 24-hour average not exceeding +35°C; minimum ambient temperature is -15°C.

• The effect of solar radiation can be ignored.

• Altitude should not exceed 1000m.

• Surrounding air should be free of significant dust, smoke, corrosive or flammable gases, vapors, or salt spray.

• Humidity conditions:

  • 24-hour average relative humidity ≤95%

  • 24-hour average water vapor pressure ≤2.2kPa

  • Monthly average relative humidity ≤90%

  • Occasional condensation may occur under these conditions.

Note: For altitudes between 1000m and 2000m, please consult with our company to determine proper usage conditions.
